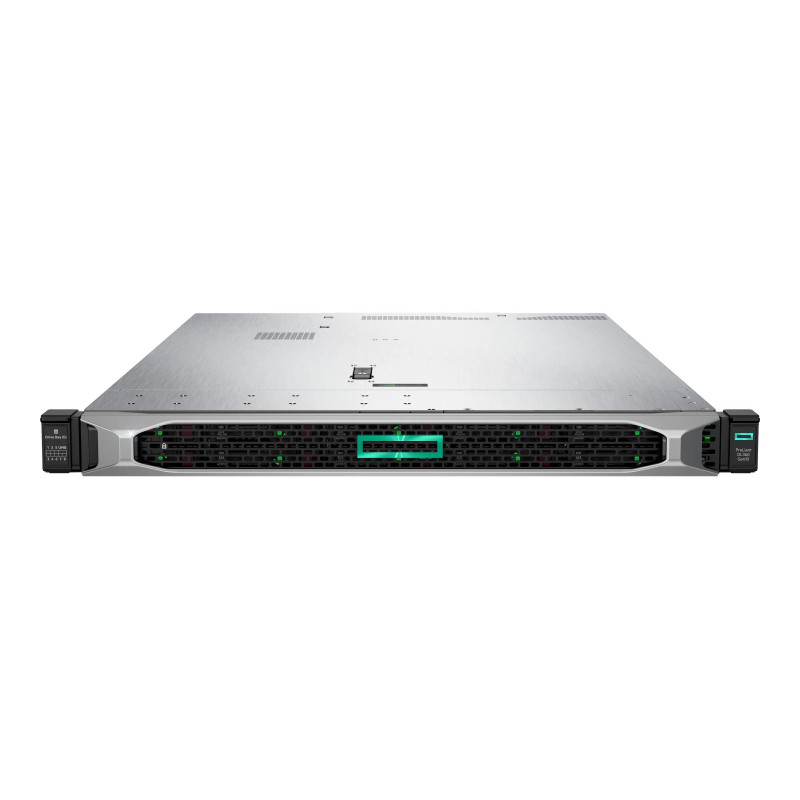

HPE ProLiant DL360 Gen10 server

Processor

Processor typeIntel

Processor familyIntel® Xeon® Scalable 8100/8200 series - Intel® Xeon® Scalable 3100/3200 series

Processor number1 or 2

Processor core available4 to 28 core, depending on model

Processor speed3.9 GHz, maximum depending on processor

Processor cache8.25 - 38.50 MB L3, depending on processor

Server Memory

Memory typeHPE DDR4 SmartMemory and Intel® Optane™ persistent memory 100 series for HPE, depending on model

Maximum memory3.0 TB with 128 GB DDR4; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit

Memory slots24 DIMM slots

NVDIMM typeHPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors

NVDIMM rankSingle rank

NVDIMM capacity16 GB

Server Cooling

System fan featuresHot-plug redundant standard

Server Expansions

Expansion slots3, for detailed descriptions refer to the QuickSpecs

Server Form Factor

Form factor1U Rack

Server Controllers

Network controllerEmbedded 4 X 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model

Storage controllerHPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model

Server Drives

Drive supported4 LFF SAS/SATA, 8 SFF SAS/SATA + 2 NVMe, 10 SFF SAS/SATA, 10 SFF NVMe, 1 SFF or 1 Dual UFF rear drive optional depending on model

Management Software

Infrastructure managementHPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)

Security

SecurityOptional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0

Weights and Dimensions

Weight13.04 kg minimum, 16.78 kg maximum (28.74 lb minimum, 37 lb maximum)

DimensionsSFF Chassis: 4.29 x 43.46 x 70.7 cm, LFF Chassis: 4.29 x 43.46 x 74.98 cm (SFF Chassis: 1.69 x 17.11 x 27.83 in, LFF Chassis: 1.69 x 17.11 x 29.5 in)
