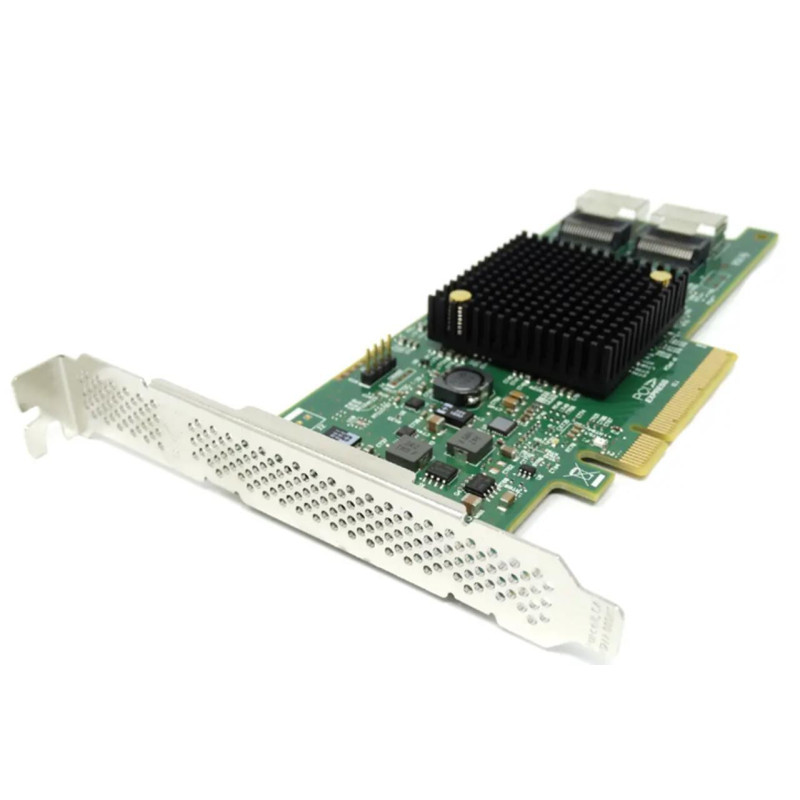

Broadcom 9207-8i SAS2308 6G SATA SAS HBA PCIe x8 3.0 LSI RAID IT Dell 0VGXKD

Overview

The LSI® SAS 9207-8i PCI Express® (PCIe®)-to-Serial Attached SCSI (SAS) host bus adapter (HBA), referred to as the LSI
SAS 9207-8i HBA, provides high-performance internal storage connectivity for servers and workstations. The LSI SAS
9207-8i HBA provides eight lanes of 6Gb/s SAS storage connectivity and is matched with eight lanes of PCIe 3.0 8Gb/s
host connectivity. The low-profile design of the SAS HBA includes a full-height bracket and low-profile mounting
bracket that creates a universal fit for any server. The LSI SAS 9207-8i HBA is based on the Fusion-MPT™ architected
LSI SAS 2308 controller that integrates the latest enhancements in PCIe 3.0 technology and 6Gb/s SAS technology.
The LSI SAS 9207-8i HBA has onboard Flash memory for the firmware and BIOS.

HBA Features

This section lists the LSI SAS 9207-8i HBA features.

• Implements one LSI SAS 2308 eight-port 6Gb/s to PCIe 3.0 controller
• Supports eight-lanes, full-duplex PCIe 3.0 performance
• Supports eight internal 6Gb/s SATA+SAS ports
• Supports SAS link rates of 1.5Gb/s, 3.0Gb/s, and 6.0Gb/s
• Provides two x4 internal mini-SAS connectors (SFF-8087) with sidebands
• Supports up to 256 SATA or SAS end devices
• Offered with a full-height bracket and low-profile vented bracket
• Provides one heartbeat LED
• Uses sideband signals in multilane connectors to support serial general purpose input/output (SGPIO)
